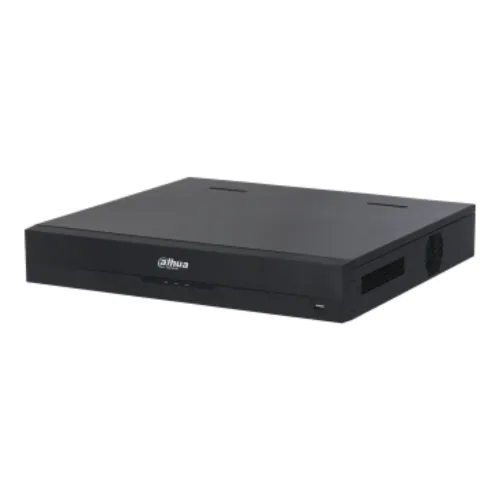

Dahua NVR5464-EI 64 Channel 4HDD 1.5U WizSense NVR

Offer Price 65,000.00৳

Price 69,000.00৳

IN STOCK

Featured Description:

Key Features

  • Model: NVR5464-EI
  • Channels Capacity: 64 Channels
  • Decoding Capability: 32x 1080p@30 fps, 32x 2MP@30 fps
  • Storage Capacity: 4 SATA Ports
  • Interface: 3x USB, 2x HDMI, 2x VGA, 2x RJ45

Original price was: 69,000.00৳ .Current price is: 65,000.00৳ .

Description

Specification

System
Main Processor Industrial-grade processor
Operating System Embedded Linux
Audio and Video
IP Camera Input 64
Two-Way Talk Yes
Display
Interface 2x HDMI
2x VGA
Resolution 2 VGA, 2 HDMI
VGA:1920 × 1080, 1280 × 1024, 1280 × 720
HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
Heterogeneous video source output for HDMI1 and HDMI2
Simultaneous video source output for VGA1 and HDMI1
Simultaneous video source output for VGA2 and HDMI2
Decoding Capacity Max. decoding capability: 32 × 1080p@30 fps or 32 × 2MP@30 fps
Multi-Screen Display Main screen: 1/4/8/9/16/25/36/64
Sub screen: 1/4/8/9/16
Recording
Compression Video Compression: Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression: G.711a; G.711u; PCM; G726
Resolution 32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p; 720p; D1; CIF; QCIF
Video Detection And Alarm
Trigger Event Motion detection; privacy masking; local alarm
Video Detection Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; abnormal behavior of fan; cybersecurity exception
Alarm Input YesFace detection; perimeter protection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); SMD Plus; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map
Relay Output Record; snapshot (panoramic); local alarm output; IPC external alarm output; access controller; audio; buzzer; log, preset; email
Playback And Backup
Search Mode Up to 16 channels
Playback Function Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)
Backup Mode USB device and network
Third Party Support
Third Party Support ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung
Network
Ethernet Port 2x Network Port (10/100/1000 Mbps Ethernet port, RJ-45)
Storage
Internal HDD 4 SATA ports, each disk can contain up to 20 TB. This limit varies depending on the environment temperature
eSATA 1
Auxiliary Interface
USB 3x USB (1 front USB 2.0 port, 2 rear USB 3.0 ports)
RS232 1
RS485 1
Power
Power Supply 100–240 VAC, 50-60 Hz
Power Consumption Total output of NVR is ≤ 13 W (without HDD)
Component Environment
Operational Conditions –10 °C to +55 °C (14 °F to +131 °F)
Storage Conditions –20 °C to +60 °C (–4 °F to +140 °F)
Construction
Dimensions 440.0 mm × 415.1 mm x 70.0 mm (17.32″ × 16.34″ × 2.76″) (W ×D × H)
Net Weight 4.74 kg (10.45 lb)
Gross Weight 6.11 kg (13.47 lb)
Warranty
Manufacturing Warranty 1-Year

Description

Dahua NVR5464-EI 64 Channel 4HDD 1.5U WizSense NVR

The Dahua NVR5464-EI is a powerful 64-channel 4HDD 1.5U WizSense NVR that includes advanced features for full video surveillance. Fueled by an embedded Linux operating system and an industrial-grade processor, it can decode MJPEG, H.265+, H.265, and Smart H.264+ codecs. This high-performance 64-channel 4HDD WizSense NVR, the Dahua NVR5464-EI, boasts a remarkable 384 Mbps incoming/recording/outgoing bandwidth and a maximum decoding capacity of 32 channels at 1080p@30 fps or 32 channels at 2MP@30 fps. These features enable reliable video processing. Notably, it enables N+M cluster configuration and AcuPick up to 16 channels. While AI by the camera covers face detection, recognition, perimeter protection, SMD Plus, metadata, ANPR, stereo analysis, heat map, and people counting, AI by the recorder covers 2-channel face detection and recognition, 4-channel perimeter protection, and 8-channel SMD Plus. With a 2.5 G total capacity, the unit can accommodate up to 20 face databases. Its metadata analysis covers non-motor vehicles, motor vehicles, and human features. The Dahua NVR5464-EI NVR is a flexible and strong option for large-scale video surveillance systems, featuring twin HDMI and VGA outputs, and full network connectivity, including ONVIF and mobile access. It is the perfect alternative for demanding security applications since it offers plenty of storage options, intelligent alarm connections, and alarm configurations. Construction of the Dahua NVR complies with certifications like FCC and CE-EMC, guaranteeing dependability and conformity with industry requirements.
